P AUDIO PHT404

Our Price: $34.99

Quantity in Stock:(Out of Stock)

Availability:: Usually Ships in 24 to 48 Hours
Product Code: P-AUDIO-PHT404

Qty:

Description

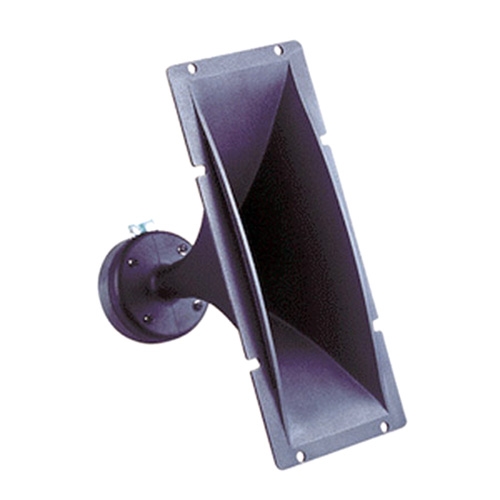

P Audio PHT404 Horn-Driver Combo

Size: 4" x 10"
Power Rating: 20W AES
Frequency Response: 3-16kHz
Sensitivity: 105db
Impedance: 8 ohms
Diaphragm: Phenolic
Horn: Cast aluminum

The P Audio PHT-404 is an integrated high frequency horn and compression driver. The design yields very extended high frequency response and controlled directivity in a rectangular geometry. The rated coverage pattern is 100 degree horizontal by 60 degree vertical. This rated coverage pattern is ideal for short throw applications such as foreground and background music system designs found in restaurants, pubs, and retail environments. The PHT-404 has a rated bandwidth of 3kHz to beyond 16kHz. This frequency response range makes the system excellent for wide coverage upper midrange and high frequency operation. The PHT-404 is ideally mated with a 10 inch, or 8 inch low frequency loudspeaker in a two way design.

The PHT-404 features a 1 inch diameter (25.4mm) phenolic based dia- phragm assembly. The small format (1 inch) diaphragm is ideal for main- taining piston range performance in the upper frequency range. The wide horizontal mouth (10.6 inches, 269mm) maintains very good horizontal coverage control.The high sensitivity of 105 dB (1 watt at 1 meter) allows the PHT-404 to be used in medium sized venues. The horn is made of a rigid die cast aluminum and the critical compression driver components are all controlled by P Audio's advanced quality and manufacturing systems.
