CELESTION CDX1-1748

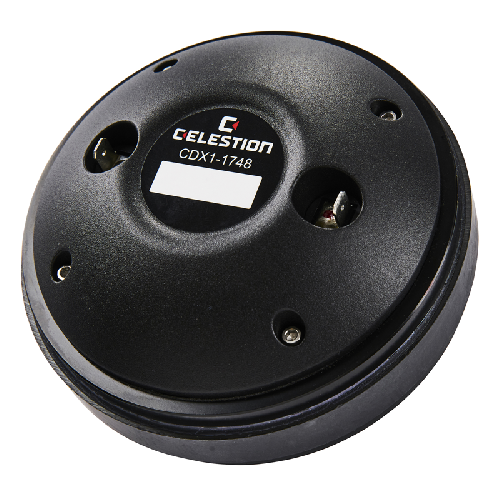

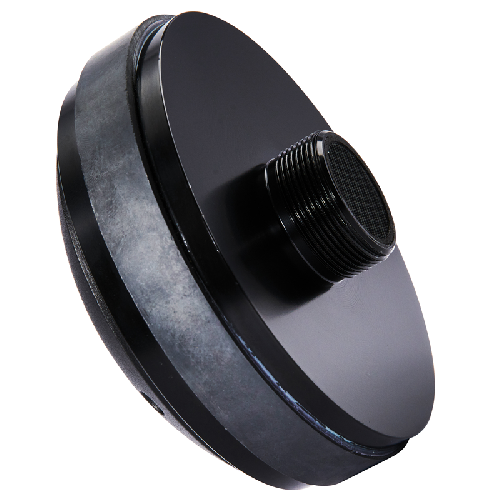

Celestion CDX1-1748 Ferrite 1" High Frequency Driver

Alternative Views:
Our Price: $99.00

Quantity in Stock:17

Free Shipping
Availability:: Usually Ships in 24 to 48 Hours
Product Code: CELESTION-CDX1-1748
Qty:

Description


Celestion CDX1-1748 1" Ferrite High-Frequency Driver

Size: 1", 25mm
Power Rating: 60W RMS
Frequency Response: 1000-20kHz
Sensitivity: 110db
Impedance: 8 ohms
Voice Coil: 1.75" edgewound copper
Diaphragm: Polymide
Recommended Crossover Frequency: 2.0kHz
Weight: 6.6 lbs.
Screw-on

  • 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
  • 60W RMS power handling (AES standard) and 110dB sensitivity
  • Sound Castle clamping ensures even pressure on diaphragm assembly for reduced distortion
  • One piece Polyimide diaphragm and surround
  • Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design
More information here.
