CELESTION CDX1-1745

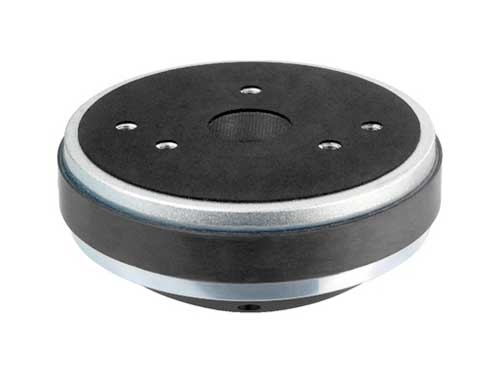

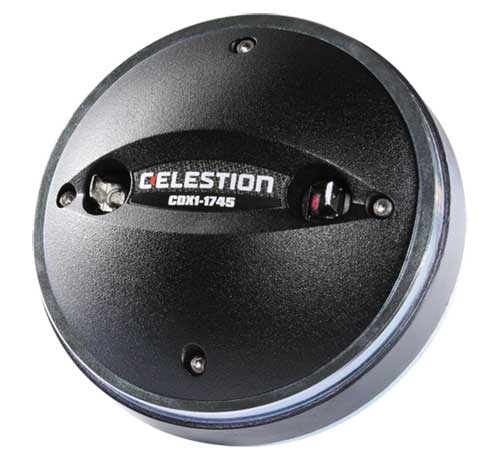

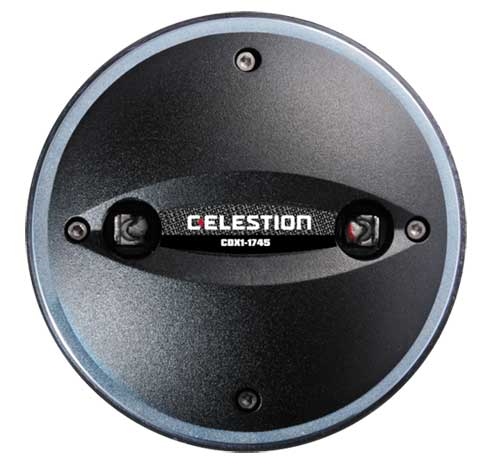

Celestion CDX1-1745 1" High frequency Driver

Alternative Views:
Our Price: $89.00

Quantity in Stock:(Out of Stock)

Free Shipping
Availability:: Usually Ships in 24 to 48 Hours
Product Code: CELESTION-CDX1-1745
Qty:

Description


Celestion CDX1-1745 Ferrite High-Frequency Driver

Size: 1", 25mm
Power Rating: 40W RMS
Frequency Response: 1.2k-20kHz
Sensitivity: 110db
Impedance: 8 ohms
Voice Coil: 1.75" edgewound copper
Diaphragm: PETP film
Recommended Crossover Frequency: 2.2kHz
Weight: 5.1 lbs.
Flange (3 x M6 holes on 76mm/3in PCD)
T5363

  • 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
  • 40Wrms power handling (AES standard) and 110dB sensitivity
  • Sound Castle™ clamping ensures even pressure on diaphragm assembly for reduced distortion
  • One piece PETP diaphragm and surround
  • Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design

More information here.
