18 SOUND HD1050

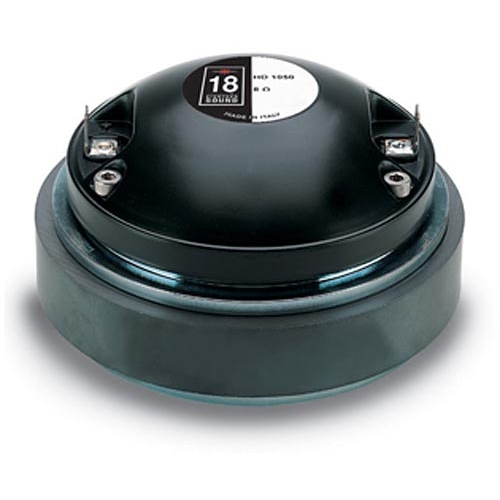

18 Sound HD1050 High Frequency Driver

Our Price: $103.99

Quantity in Stock:(Out of Stock)

Free Shipping
Availability:: Usually Ships in 24 to 48 Hours
Product Code: 18-SOUND-HD1050
Qty:

Description


18 Sound HD1050 1" High Frequency Driver

Size: 1" inch exit
Power Rating: 50W AES
Frequency Response: 1.6-20kHz
Sensitivity: 107db
Impedance: 8 ohms
Voice Coil: 1.75"
Diaphragm: Titanium dome over PEN suspension
Weight: 4.2 lbs.

Bolt-on only.

The HD1050 one-inch exit high frequency compression driver has been designed for use in high quality audio systems. Equipped with Eighteen Sound proprietary Phase Plug architecture, the HD1050 has been designed to give high level manufacturing consistency and smooth coherent wave front at the horn entrance across the whole working frequency range. The phase plug with its short openings and high flare rate value assures low distortion and demonstrates remarkable improvements in mid-high frequency reproduction.

The diaphragm assembly is composed of a titanium dome sandwiched to a proprietary treated polyester suspension unit. It has been designed to maintain low resonance, lowering the minimum crossover point value at 1.6kHz. An edge-wound aluminum voice coil, wound on proprietary treated Nomex, completes the diaphragm assembly.

Thanks to its physical properties, the proprietary treated Nomex former has a 30% higher value of tensile elongation at a working operative temperature (200 degrees C) when compared to Kapton. This feature enables proper energy transfer control from the voice coil to the dome in real working conditions. Moreover, this proprietary former material is also suitable to for use in higher moisture content environments.

The HD1050 powerful ceramic magnet assembly has been designed to obtain 16 KGauss in the gap and within a compact ferrite motor structure.

More information here.
Features
  • 107 dB SPL 1W / 1m average sensitivity
  • 1 inch exit throat
  • 44 mm (1 3/4 inch) voice coil diameter
  • 100 Watt program power handling
  • Titanium dome over PEN suspension
  • Proprietary phase plug design
