18 SOUND 15MB700

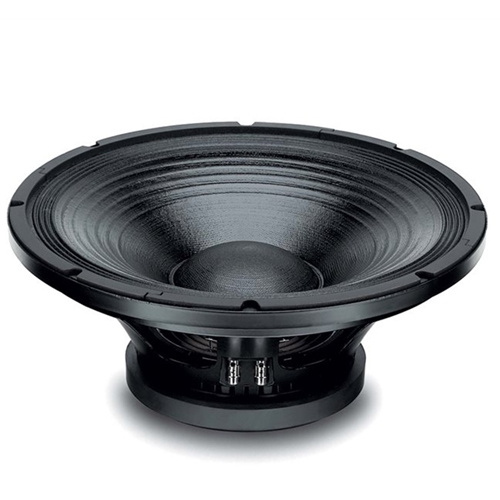

18 Sound 15MB700 Mid-Bass Speaker

Alternative Views:
List Price: $259.99
Our Price: $234.99
Sale Price: $234.99
Savings: $25.00

Quantity in Stock:(Out of Stock)

Free Shipping
Availability:: Usually Ships in 24 to 48 Hours
Product Code: 18-SOUND-15MB700
Qty:

Description


18 Sound 15MB700 15" Mid-Bass Speaker

Size: 15"
Power Rating: 400W AES
Frequency Response: 45-4.3kHz
Sensitivity: 103db
Impedance: 8 ohms
Voice Coil: 3"
Weight: 21 lbs

The 15MB700 is a very high output mid-bass transducer that shows exceptional efficiency and is primarily intended for 2-way very compact reflex systems (75 lt.), 3-way systems and horn loaded applications. It combines high sensitivity (103 dB 1W/1m) with a high power handling capability.

The smooth textured curvilinear paper cone, in conjunction with the viscose dampened multiroll suspension, provides excellent cone dampening and excursion control. The 3" diameter aluminum voice coil features the same technology fitted to our top-of-the-range 4" voice-coil models. It employs Interleaved Sandwich Voice coil (ISV) technology, in which a high strength fiberglas former carries windings on both the outer and inner surfaces to achieve a mass balanced coil.

This results in an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard. The low coil inductance results in an improved transient response. Excellent heat dissipation has been achieved by incorporating air channels into the basket design, between the basket and the top plate. Maximum flux concentration and force factor in the gap are assured by the unique shape and design of the top and back plates which have been designed using our in-house Magnetic Flux FEA CAD resource.

Due to the increasing use of audio systems at outdoor events, the ability to perform in adverse weather conditions or in high-humidity areas is a key feature of the 15MB700. This has been achieved using exclusive cone and magnetic plate treatment processes which allows the speaker to resist corrosion and render the cone water repellent.




More information here.
Features
  • 103 dB SPL 1W / 1m average sensitivity
  • 75 mm (3 in) Interleaved Sandwich Voice coil (ISV)
  • 400 W AES power handling
  • Excellent transient response
  • Additional cone damping treatment
  • Improved heat dissipation via unique basket design
  • Suitable for compact two way, multiway and horn loaded midbass applications
