18 SOUND 10M600

Our Price: $249.99

Sale Price: $204.99

Savings: $45.00

Quantity in Stock:(Out of Stock)

Availability:: Usually Ships in 24 to 48 Hours
Product Code: 18-SOUND-10M600

Qty:

Description

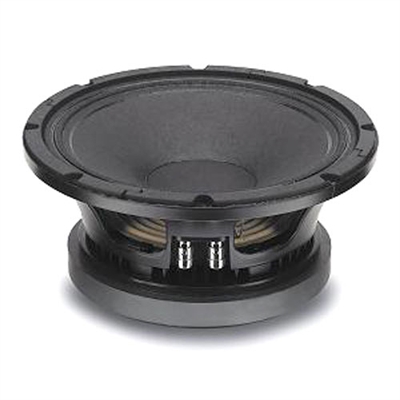

18 Sound 10M600 10" Midrange Speaker

Specifications: Size: 10"
Power Rating: 400W RMS
Frequency Response: 80-5.2kHz
Sensitivity: 102dB
Impedance: 8 ohms
Voice Coil: 2.95"
Resonant Frequency: 70 Hz
Weight: 17.22 lbs.

The 10M600 is a top performance 10" ferrite midrange driver which offers high power handling capability with exceptional sensitivity over the middle frequency band. It is suitable for either direct radiating or horn loaded applications as part of a 3 or 4-way auditorium, touring, or outdoor festival sound system. It is the result of an intensive development program which aimed to produce the best 10" ferrite midrange driver available.

The smooth curvilinear paper cone has a special high strength wood pulp composition and has been designed to achieve the best possible linearity within the middle frequency range and to control bell-mode resonances around the cone circumference. The cone is carried by a double half-roll suspension composed of a material which is more resistant to aging and fatigue than traditional materials, providing the correct damping and excursion control.

The 75 mm state-of-the-art voice coil assembly incorporates a fine edge-wound aluminum wire together with a strong fiberglass former to get the necessary force factor, mass lightness and high power handling.

The voice coil is cooled using airways between the chassis back plate and the magnet face plate, which allow heated air from the voice coil and gap to be channeled away and dissipated by the chassis basket. This technology is another product of 3D CAD resource application by our engineers.

The magnetic structure has also been optimized using our in-house FEA CAD resource which has maximized the flux density in the voice coil gap. A special treatment is applied to both the top and back plates making them more resistant to the corrosive effects of salts and oxidation. This treatment is more effective than any other treatment in use today.

More information here.
